Bill Of Materials
ID | CAD Ref | Qty | Name | Size | Material | Process | Filename | Download |
---|---|---|---|---|---|---|---|---|
1.4.1. | 1 | 6x | Upper Spring Socket Holder | PLA | Printed | 0024-delta-rods-upper-holder | STL | |
1.4.2. | 2 | 6x | Lower Spring Socket Holder | PLA | Printed | 0023-delta-rods-lower-holder | STL | |
1.4.3. | 3 | 6x | Carbon Tube | M5.8mm x 255mm | Carbon Fibre | Source | ||
1.4.4. | 4 | 12x | Screw, Pan Head | M3x10mm | Stainless or others | Source | ||
1.4.5. | 5 | 6x | Tension Spring | Stainless or others | Source |

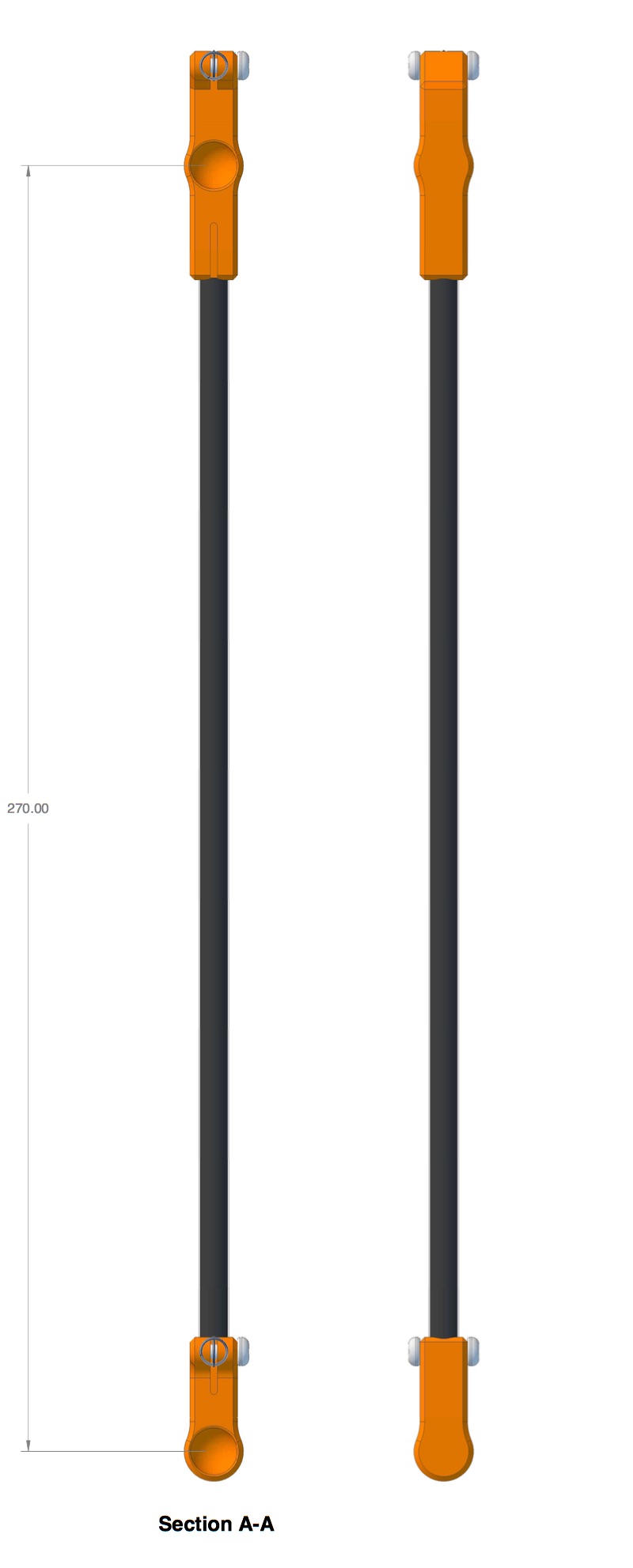

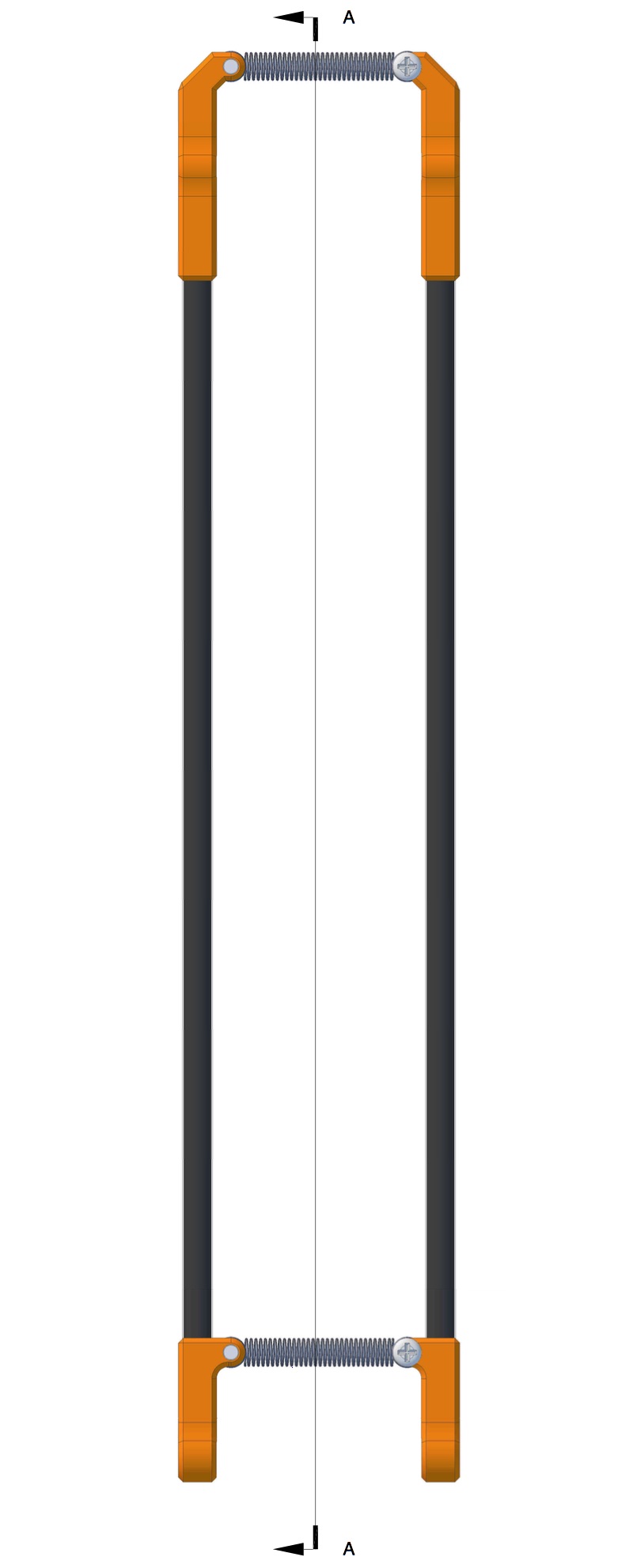

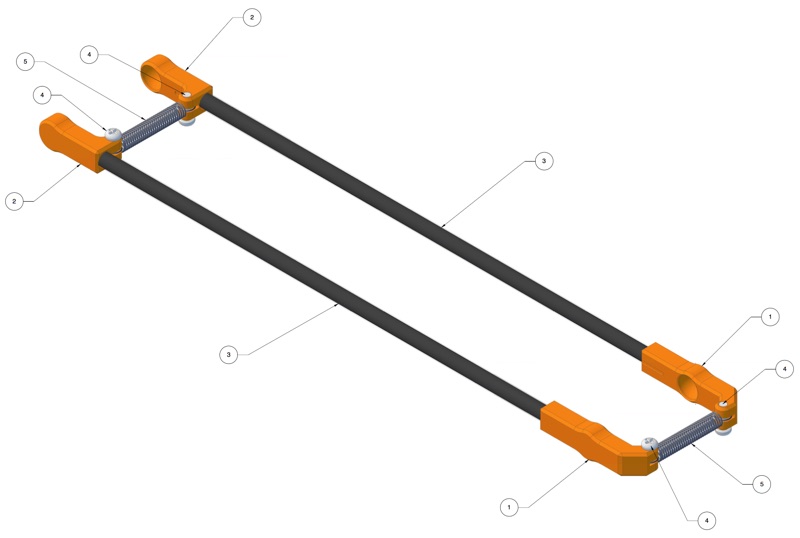

CAD Drawings
CAD rendering by Tin Whiskers Technologies under a Creative Commons Attribution-ShareAlike (CC BY-SA) 4.0 license
