Bill Of Materials
| ID | CAD Ref | Qty | Name | Size | Material | Process | Filename | Download |
|---|---|---|---|---|---|---|---|---|
| 1.2.1. | 2/3 | 6x | 608 Bearing Block | PLA | Printed | 0001-P-608-bearing-block | STL | |
| 1.2.2. | 26 | 3x | 3D Printed Delta Stepper Mount | PLA | Printed | 0456-delta-stepper-mount | STL | |
| 1.2.3. | 22 | 1x | Delta Motor Plate | various | various | PC03-delta-motor-plate | ||
| 1.2.4. | 10 | 3x | Optical Endstop Board | Standard | PCB | sourced | ||
| 1.2.5. | 12 | 12x | Cap Screw, Button Head | M5x14mm | Stainless | sourced | ||
| 1.2.6 | 13 | 12x | Cap Screw, Button Head | M5x20mm | Stainless | sourced | ||
| 1.2.7. | 15 | 24x | Fastener Nut | M5 | Stainless | sourced | ||
| 1.2.8. | 17 | 18x | Cap Screw, Button Head | M3x20mm | Stainless | sourced | ||
| 1.2.9. | 14 | 18x | Fastener Nut | M3 | Stainless | sourced | ||
| 1.2.10. | 9 | 3x | Stepper Motor | NEMA 17 | sourced | |||
| 1.2.11. | 18 | 12x | Cap Screw, Button Head | M3x8mm | Stainless | sourced | ||
| 1.2.12. | 8/19 | 3x | GT2 Pulley with Set Screws | 16 teeth, 5mm bore | Aluminum/Steel | sourced |

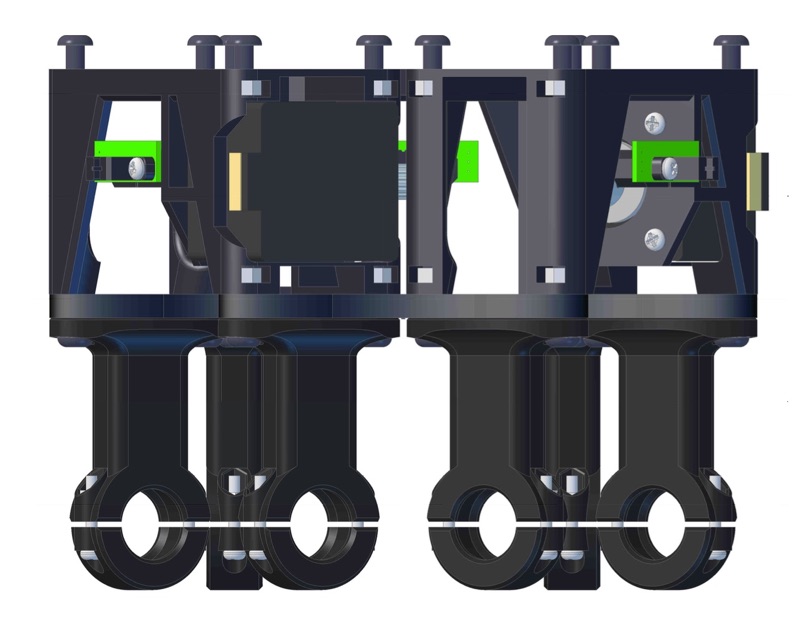

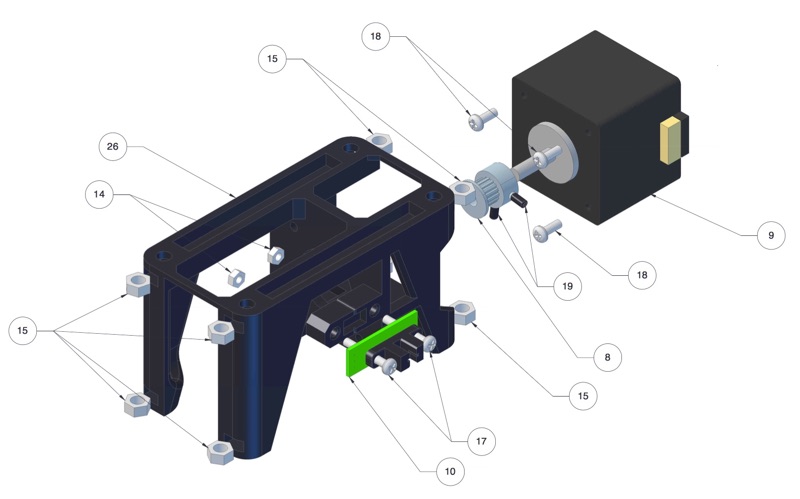

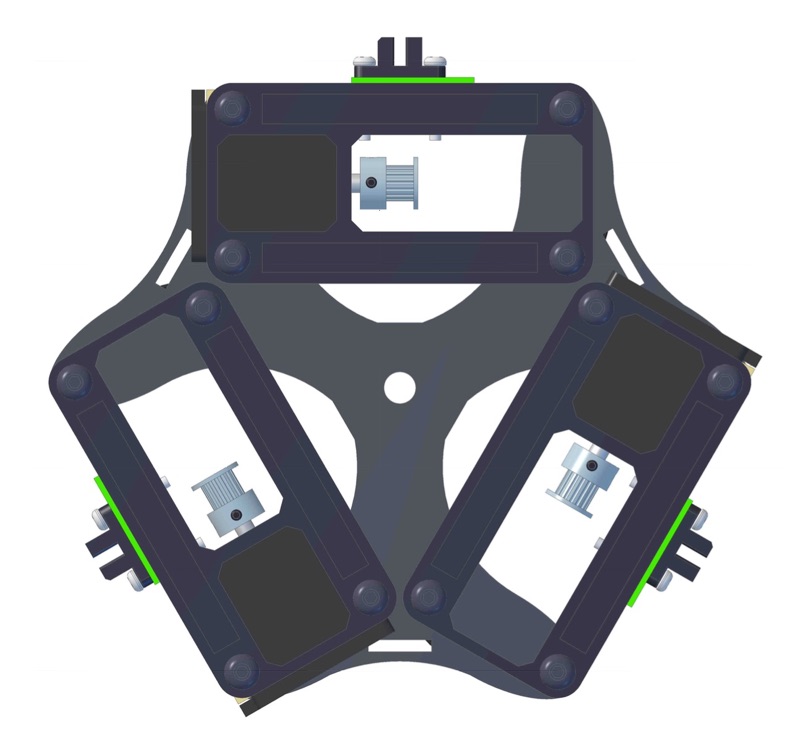

CAD Drawings
CAD rendering by Tin Whiskers Technologies under a Creative Commons Attribution-ShareAlike (CC BY-SA) 4.0 license
