Bill Of Materials
ID | CAD Ref | Qty | Name | Size | Material | Process | Filename | Download |
---|---|---|---|---|---|---|---|---|
1.3.1. | 1 | 3x | Delta Pulley 150T | PLA | 3D Printed | 0002S-delta-pulley-150T | STL | |
1.3.2. | 2/3 | 6x | Delta Arm 90mmm with Nut | PLA | 3D Printed | 0003-delta-arm-90mm | STL | |
1.3.3. | 4 | 3x | Limit Switch Interruptor | PLA | 3D Printed | 0007-limit-switch-interruptor | STL | |
1.3.4. | 5 | 6x | Bearing | 608 | Steel | Sourced | ||
1.3.5. | 6 | 6x | Ball Stud | 3/ 8" dia, M3x10 | Stainless | Sourced | ||
1.3.6. | 7 | 3x | Cap Screw, Flat Head | M3x12mm | Stainless | Sourced | ||
1.3.7. | 9 | 3x | Cap Screw, Pan Head | M3x12mm | Stainless | Sourced | ||
1.3.8. | 10 | 3x | Cap Screw, Pan Head | M3x20mm | Stainless | Sourced | ||
1.3.9. | 11 | 12x | Cap Screw, Pan Head | M3x30mm | Stainless | Sourced | ||
1.3.10. | 12 | 6x | Cap Screw, Pan Head | M3x50mm | Stainless | Sourced | ||
1.3.11. | 8 | 44x | Fastener Nut | M3 | Stainless | Sourced | ||
1.3.12. | 13 | 6x | Flat Washer | M3 | Stainless | Sourced |

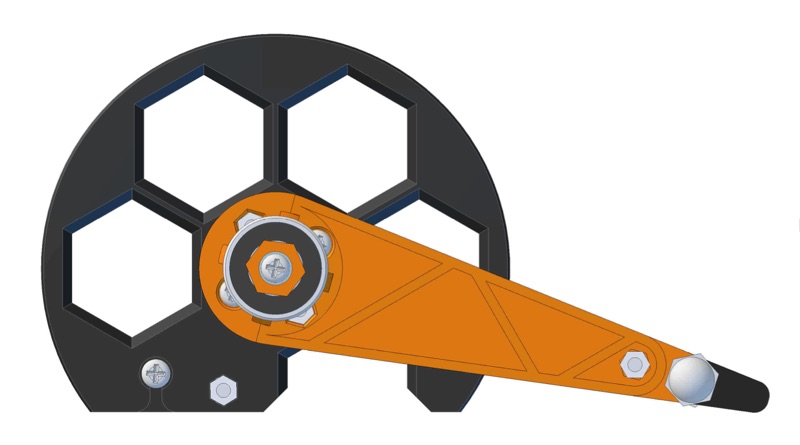

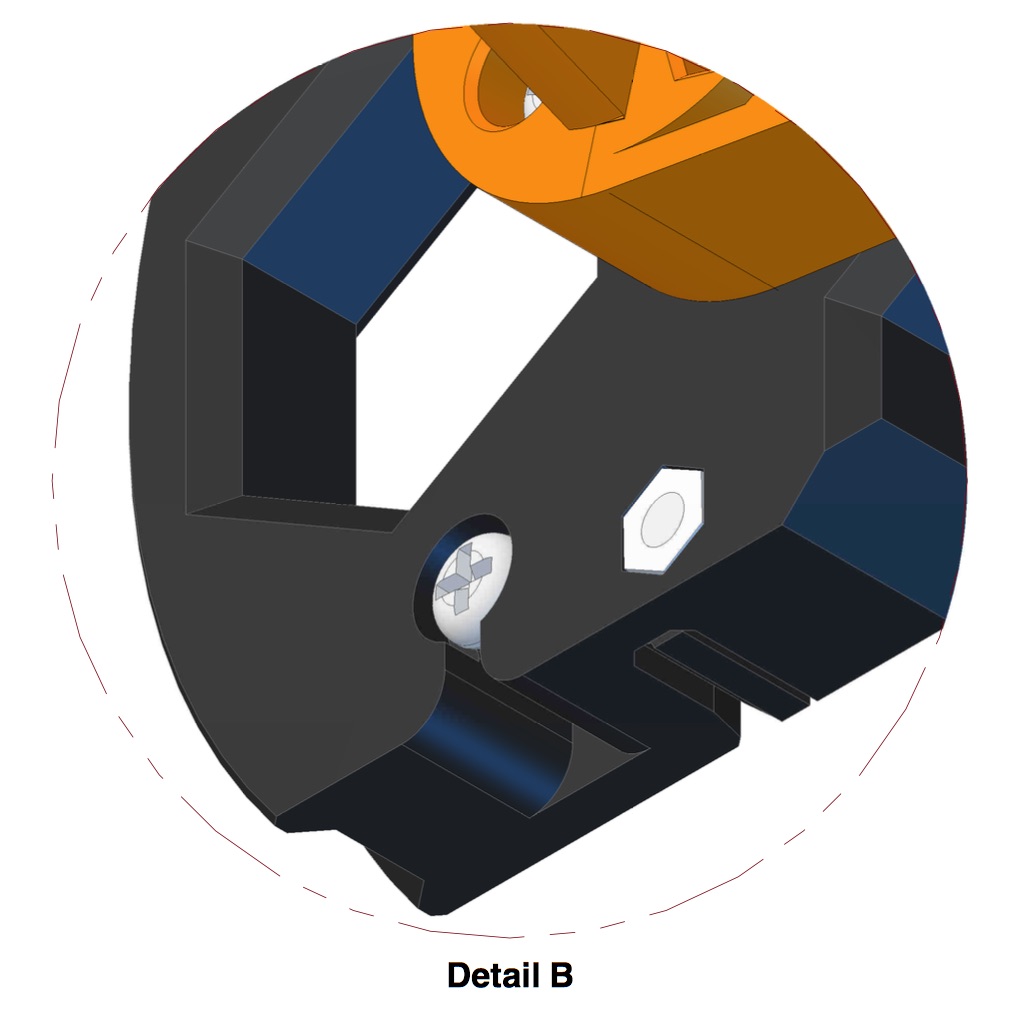

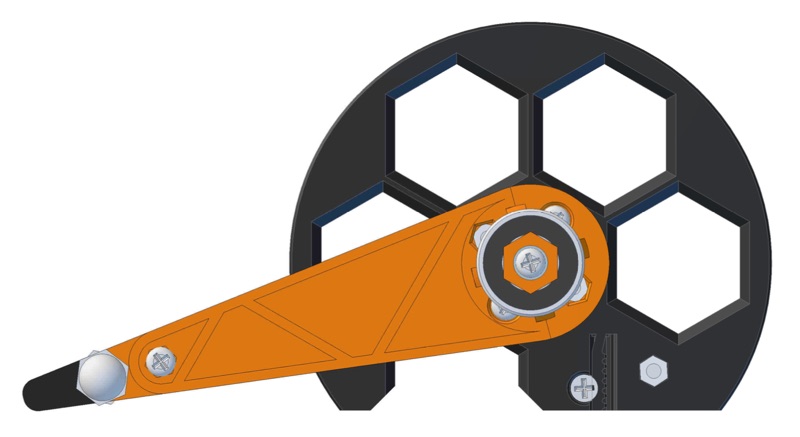

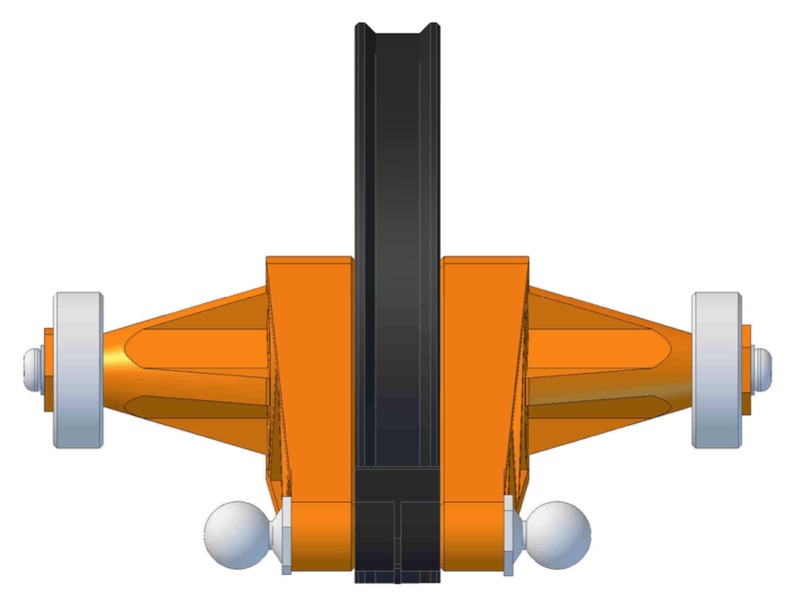

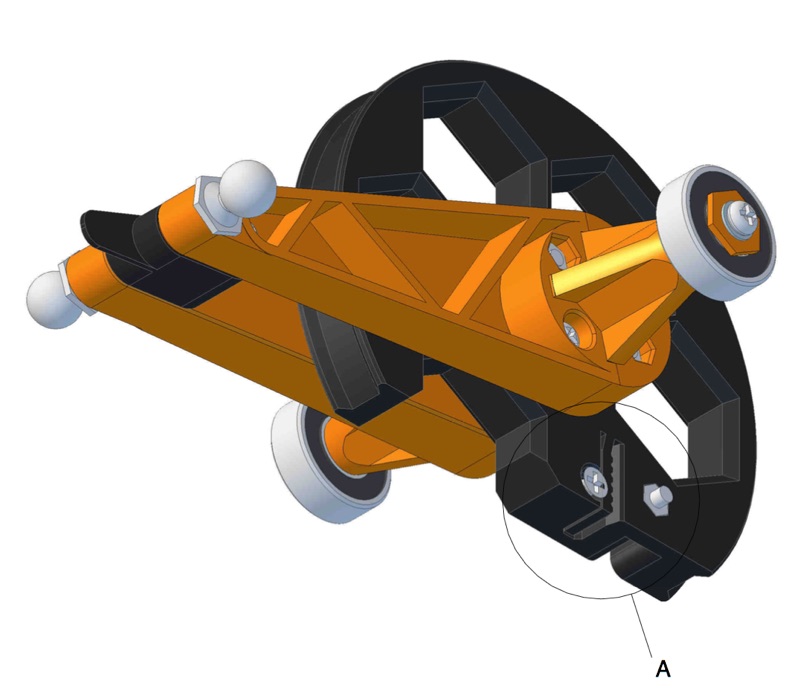

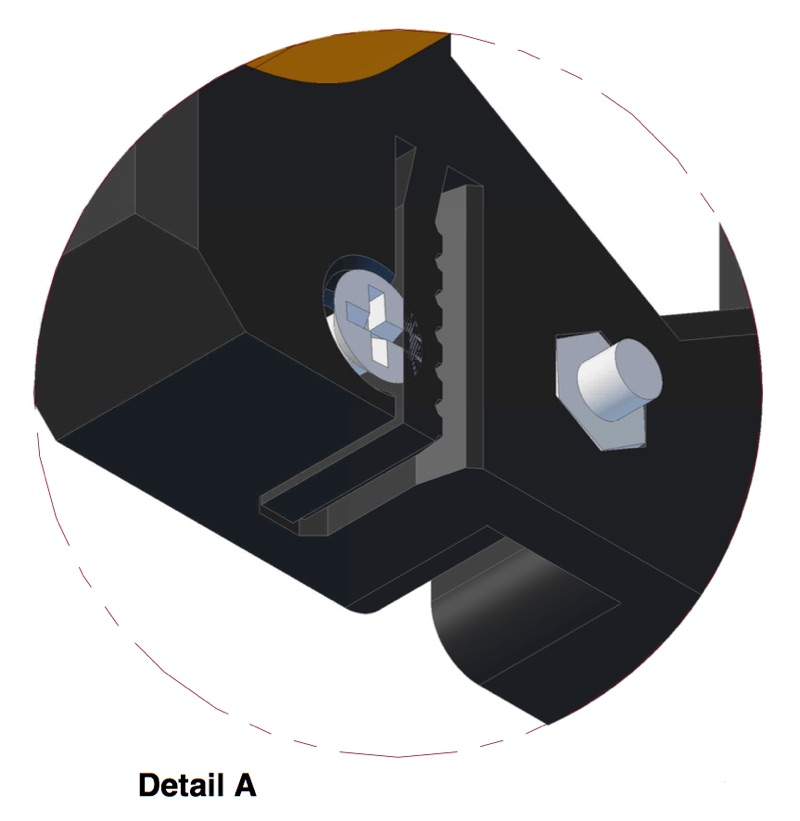

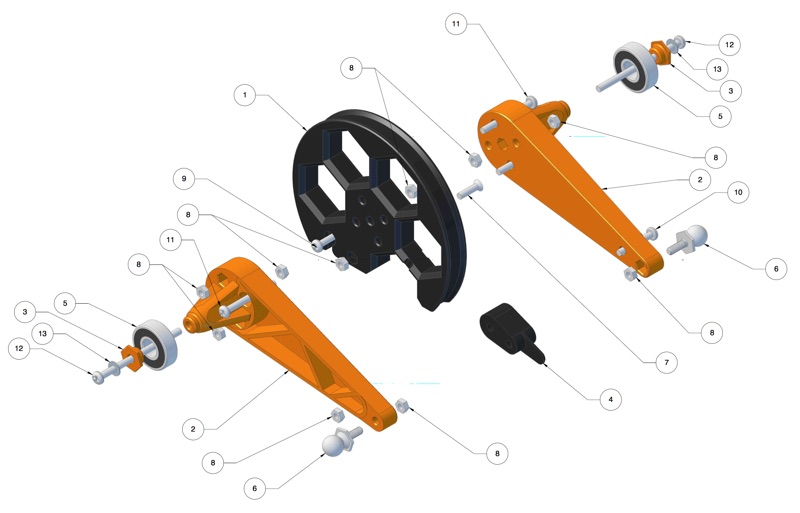

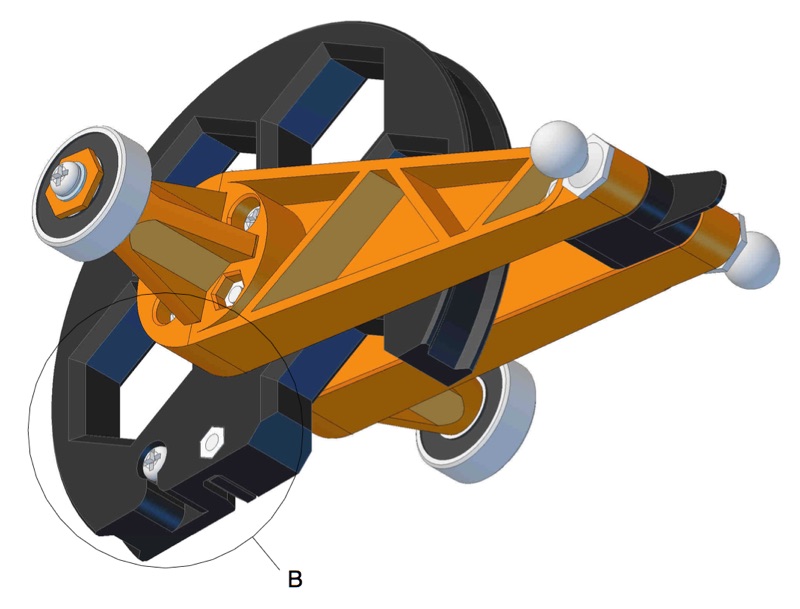

CAD Drawings
CAD rendering by Tin Whiskers Technologies under a Creative Commons Attribution-ShareAlike (CC BY-SA) 4.0 license
