Bill Of Materials
| ID |
Qty |
Name |
Size |
Material |
Process |
Filename |
Download |
| 2.1.1. |
1x |
Nema 8 Tool Mount |
3D Printed |
1005-nema-8-tool-mount |
STL
|
| 2.1.2. |
1x |
Nozzle with Adapter to Hollow Shaft Stepper |
Sourced |
|
Source
|
| 2.1.3. |
1x |
Nema 8 Hollow Shaft Stepper Motor |
Sourced |
|
Source
|
| 2.1.4. |
3x |
M5 flat head screw 16mm |
Sourced |
|
|
| 2.1.5. |
3x |
M5 Thin Nut |
Sourced |
|
|
| 2.1.6. |
4x |
M2 screws 5mm |
Sourced |
|
|
2.1.1. Nema 8 Tool Mount

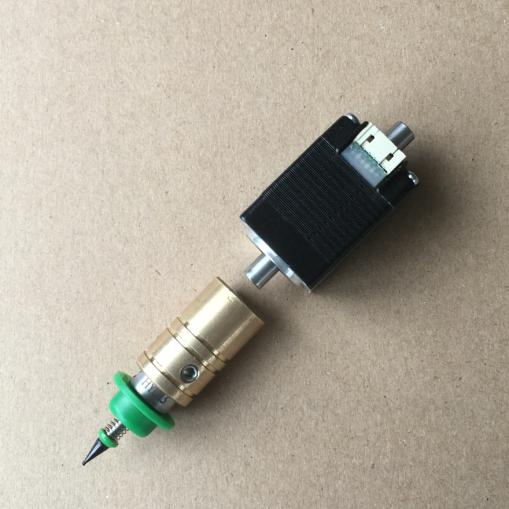

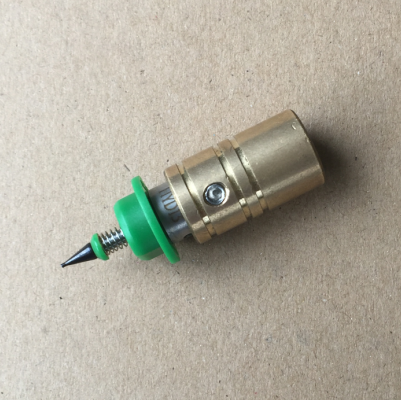

2.1.2. Nozzle with Adapter to 5mm Hollow Shaft Stepper

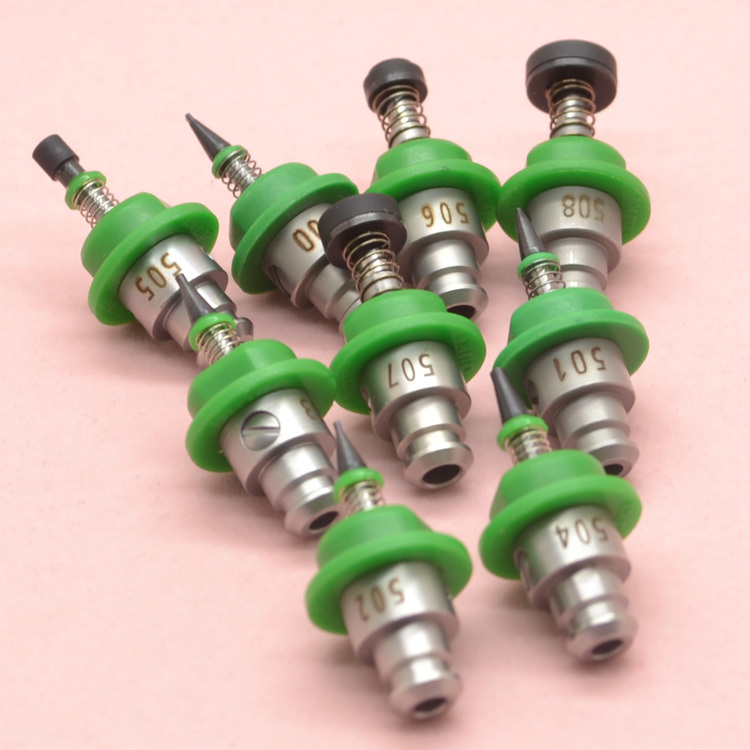

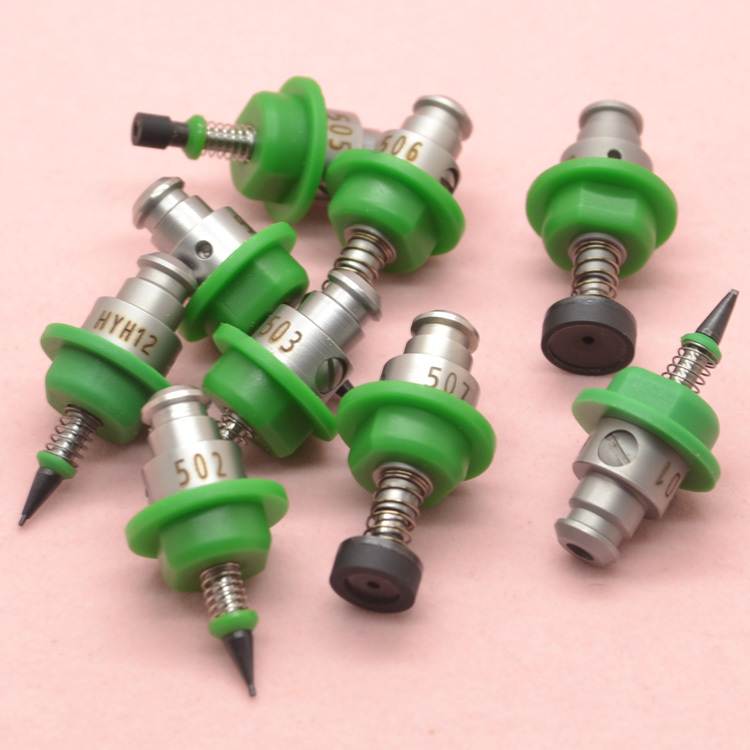

Quick overwiew which nozzle suits best for which SMT package sizes. Read the detailed PDF.
| Nozzle Type |
Tip Outer Diameter (mm) |
Tip Inner Diameter (mm) |
Applicable Component Width (mm) |
Suitable For |
| 500 |
1.0 |
0.5 |
|
|
| 501 |
0.7 |
0.4 (2x 0.2) |
D ≤ 0.45 |
0201 |
| 502 |
0.7 |
0.4 |
0.45 ≤ D < 0.75 |
0402 |
| 503 |
1.0 |
0.6 |
0.75 ≤ D < 1.45 |
0603/0805 |
| 504 |
1.6 |
1.0 |
1.1 ≤ D < 2.5 |
1206 |
| 505 |
3.5 |
1.7 |
2.5 ≤ D < 4.0 |
1210/2010/2512 |
| 506 |
5.0 |
3.2 |
4.0 ≤ D < 7.0 |
|
| 507 |
8.5 |
5.0 |
7.0 ≤ D < 10.0 |
|
| 508 |
9.5 |
8.0 |
10.0 ≤ D |
| >

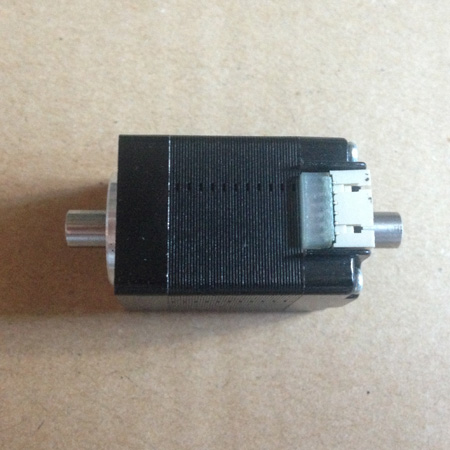

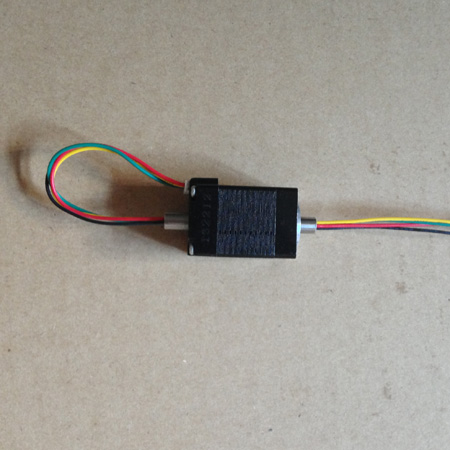

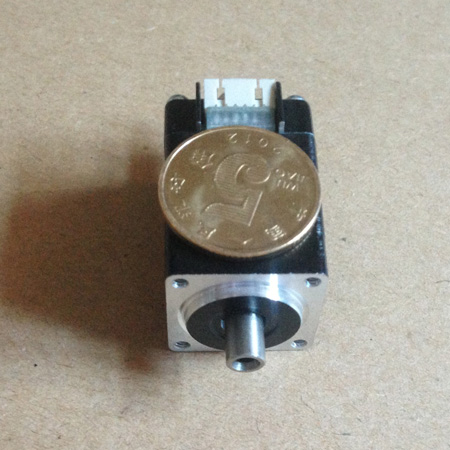

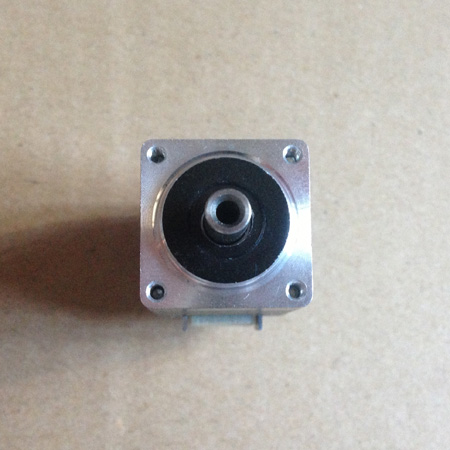

2.1.3. Nema8 Hollow Shaft Stepper Motor
